Connection of 3 CNC Drilling Machine

1.Product Introduction

The supporting equipment of connection of 3~4 CNC drilling machine, automatic conveying roller table, translation machine and intelligent control system. The operation is simple and the degree of automation is high. The board only needs to be placed manually, and the code reader automatically reads the two-dimensional code processing information on the board. The control system automatically distributes the board to the six face drilling center, and the six face drilling completes the processing of the six face and positive and negative face grooves of the board. The whole set of connection only needs to be equipped with two workers. Higher production continuity and lower labor costs.

2. Product Parameter (Specification)

Connection of 3 CNC Drilling Machine

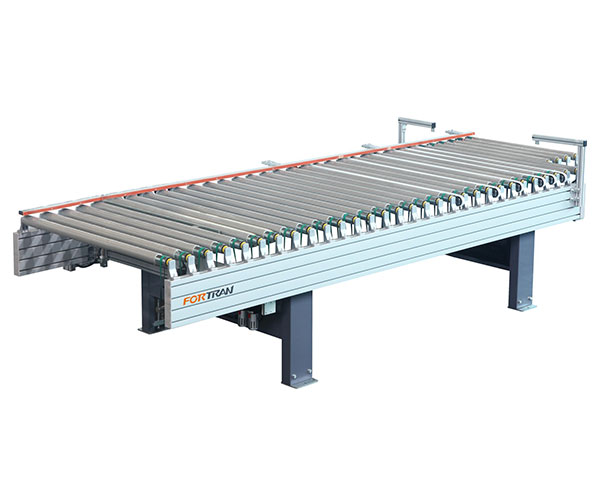

a.Powered Roller Conveyor for Panel

Model	FQ-DLG1330
External Dimension	L3000*W1415*H900±50mm
Roller center distance	80mm or 120mm
Loading	50kg/m²
Main Beam	240*50 Aluminum
Roller diameter	φ54
Rubber thickness	2mm
Synchronous belt brand	Shanghai Yong Li
Bearing with seat	TR
Power supply	0.75kw
Roller length	1300mm and 1000mm
Speed	15-28 m/min
Motor	Wangxin or Zhengming
Frequency converter	Taiwan Delta
Pneumatic component	Taiwan AirTAC
Voltage	3 phase 380V, 50Hz

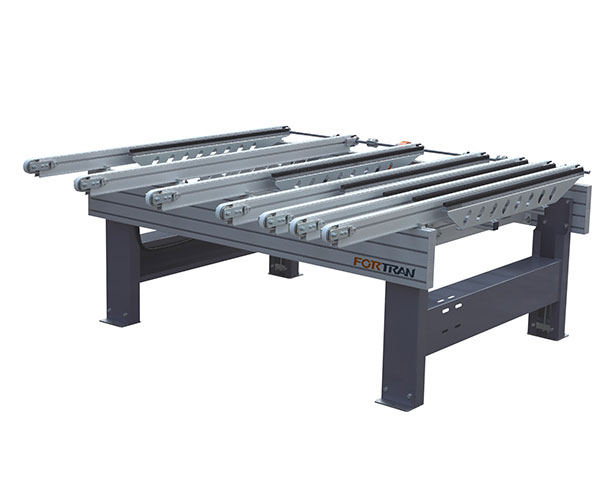

b.Translation conveyor

Model	FQ-PYJ2030
External Dimension	L2500*W1530*H900mm
Panel length	250-2400mm
Panel width	250-1200mm
Main beam	240*50 aluminum
Loading capacity	100kg/m2
Total power	0.75KW
Speed	10-28m/min
Synchronous belt	Shanghai Yongli
8 synchronous belts
Working height	900mm
Photoelectric switch	German Sick
Frequency converter	Delta/ Inovance
Electric machinery	WANSHSIN
Pneumatic components	Taiwan AirTAC

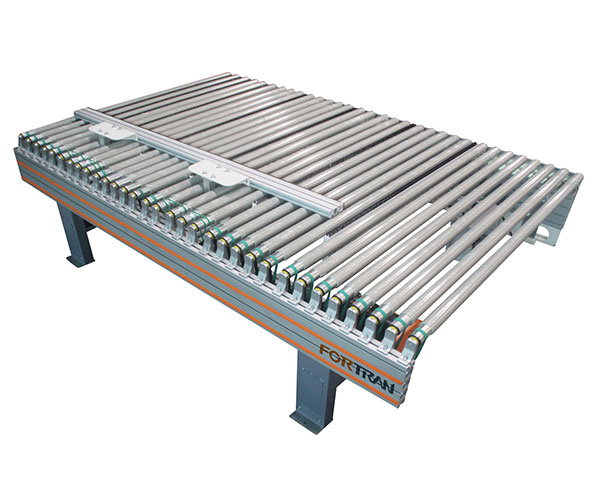

C.Powered Roller Conveyor with Translation Device for Panel

Model	FQ-DLPY1530/2030
External Dimension	L3000*W1530*H900mm
Panel length	250-2400mm
Panel width	250-1200mm
Main beam	240*50 aluminum
Loading capacity	100kg/m²
Roller distance	120mm
Roller diameter	φ54
Roller rubber thickness	2mm
Total power	0.75KW*2
Speed	10-28m/min
Synchronous belt	Shanghai Yongli
8 synchronous belts (Roller distance is 120mm when there is a synchronous belt.)
Working height	900mm
Photoelectric switch	German Sick
Frequency converter	Delta/ Inovance
Electric machinery	WANSHSIN
Pneumatic components	Taiwan AirTAC

1.The roller surface is covered with imported bright silver gray rubber (wear-resistant and not vulnerable)
2.Bearing with seat: TR (genuine first-line brand, no abnormal noise, durable and not vulnerable)
3.The elastic belt is made of Shanghai Yongli, which is durable and not easy to break
4.The feet are bent integrally and welded with high strength
