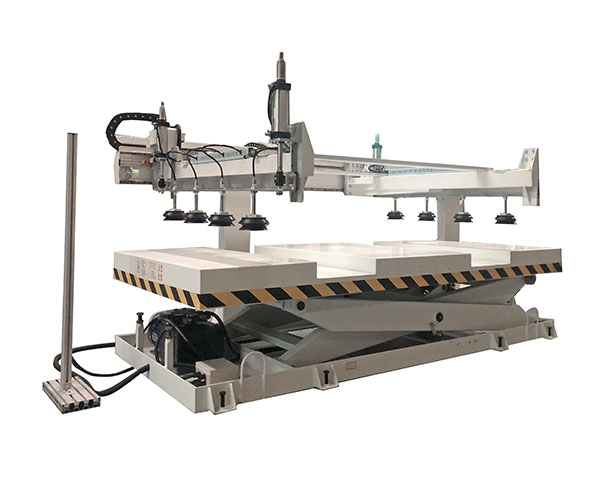

Sucker Type Loading and Unloading Machine

1.Product Introduction

Sucker Type Loading and Unloading Machine have the advantages of fast pushing speed, high stability, small vibration and long service life. Automatic lifting and feeding of large workpiece such as 2440*1220mm. Sucker Type Loading and Unloading Machine with counting function, the output can be calculated, and the PLC programming is easy operation, which is reliability and with good performance.

2. Product Parameter (Specification)

Model	FQ-XPJ01
Workpiece size	2440*1220mm, can be customized
Workpiece thickness	At least 10mm
Working height	950±30mm
Max. Load	3000kg
Working period	5 times /min
Voltage	3 Phases 380V, 50Hz

Part 1---Vacuum sucker plate feeder:

External Dimension	L3800mm*W2010mm
Suction cup working height	950±30mm, can be customized
Control system	Inovance
Electric component	Inovance
Pneumatic component	Airtac
Vacuum Cup	Schmalz/Airbest

Part 2---3T Hydraulic Lifting Table:

Table size	2500*1250mm
Min. height	450mm
Max. Height	1650mm
Load	3000 kg
Voltage	3KW, 3 phases 380V, 50Hz

Part 3---Unpowered roller conveyor:

Dimension	L1500*W1000*H900±50mm
Roller Dia.	56mm with rubber covered
Roller length	1000mm
Rubber thickness	3mm
Distance between rollers	120mm

1.Stable conveying, no relative movement between materials and conveying, can reduce the damage to conveying objects;
2.Simple structure, easy to maintain; Low energy consumption and low cost.
3.Not only the operation resistance is small, but also the wear of the workpiece is small, so the productivity is high, which can help reduce the production cost.
