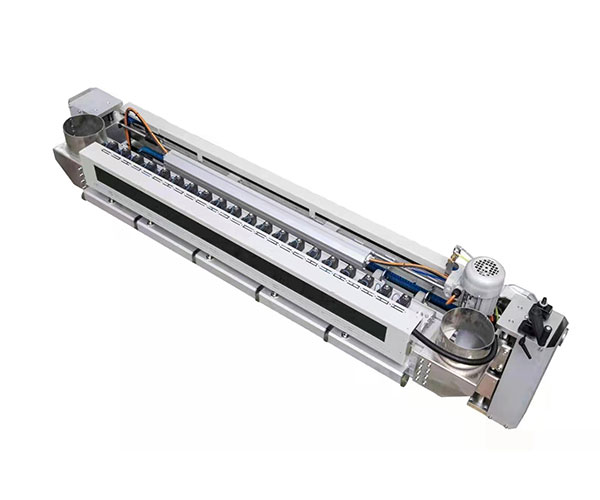

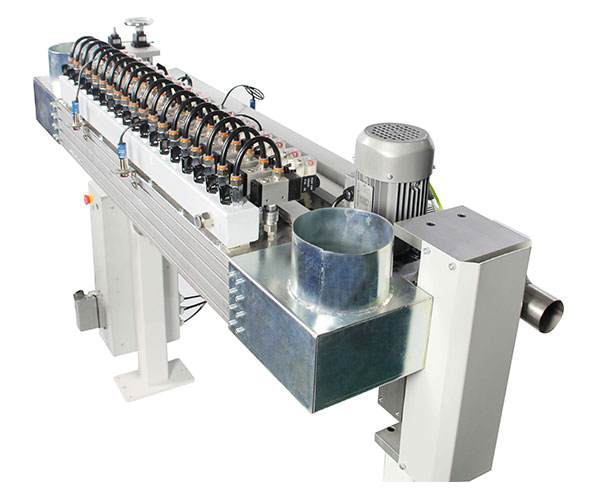

Dust Sweeper with Air Compressed Blow and Brush Cleaning

1.Product Introduction

Dust Sweeper with Air Compressed Blow and Brush Cleaning with the most effective and convenient cleaning technology. It is suitable for all sections of furniture production automation line such as CNC Nesting section, CNC drilling section and etc. Dust Sweeper with Air Compressed Blow and Brush Cleaning can effectively solve the problem of large amount of dust or fiber particles caused by processing technology, such as cutting, slotting, drilling or engraving, which can save the loss for customers.

2. Product Parameter (Specification)

Rgv Rail Guided Vehicle

Model	FQ-QS2
Appearance Size of Equipment	2120*450*450mm
Height adjustment range	0~180mm
Minimum passes through panel size	240*80mm*5mm
The working width of the roller conveyor is 1300 mm (as attached picture)
Transporter construction width	1450mm
Maximum Machinable width	1450mm
The working height of the roller conveyor	950mm
Transverse brushing speed	95m/min
Motor power	0.5KW (WOSEN motor)
Requirements for central dust removal	20m/min
Working Pressure	0.6bar 0.4L/h
Brush belt dimension	L3400*W40*D6*19/0.12*2SETS
Diameter of suction port	60mm*2 diameter 150*2
Maximum passing speed of 45m/min (for deep hole dust removal)

1.Patented Heavy Aluminum Material Used in the Whole Machine
2.Use wear-resisting and anti-static poly-amide brush for up to 2 years.
3.Self-made brush cleaning device to increase the adhesion of brush through micro humidifying device
4.Super stress beam with 8 silica gel wheels to prevent slab deviation
5.Random allocation of two sets of injection devices

4.Product Details
