Connection of 2 Edgebanding Machine

1.Product Introduction

Connection of 2 Edgebanding Machine can be divided into single-row’s and double-row’s for panel size. Connection of 2 edgebanding/edgebander machine reduces labor cost and increases capacity. Besides, different sizes of connection of 2 edgebanding/edgebander machine is suitable for different sizes of panel. Last but not least, connection of 2 edgebanding/edgebander machine is perfectly suitable for every edgebanding machine.

2. Product Parameter (Specification)

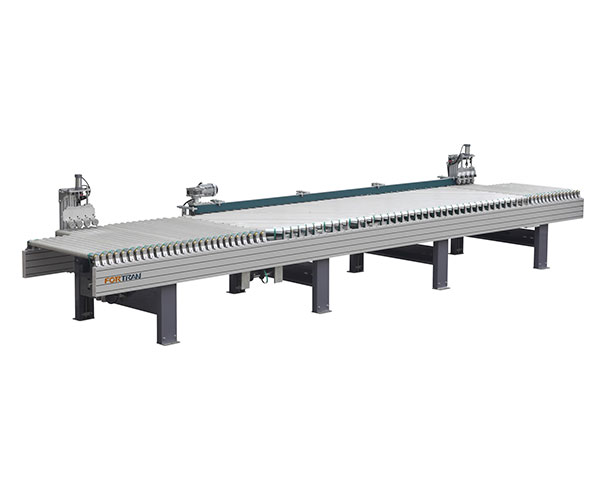

a. Single-row of connection of 2 edgebanding/edgebander machine:

Model	FQ-DLXG1415
External Dimension	L6000*W1415*H900mm
Panel length	250-2400mm
Panel width	250-1200mm
Main beam	240*50 aluminum
Loading capacity	60kg/m²
Roller distance	120mm
Roller diamete	φ54
Roller rubber thickness	2mm
Total power	0.75KW*2+0.55KW*1
Speed	10-28m/min
Inelastic band	Shanghai Yongli
Working height	900mm
Photoelectric switch	German Sick
Frequency converter	Delta/ Inovance
Electric machinery	WANSHSIN
Pneumatic components	Taiwan AirTAC

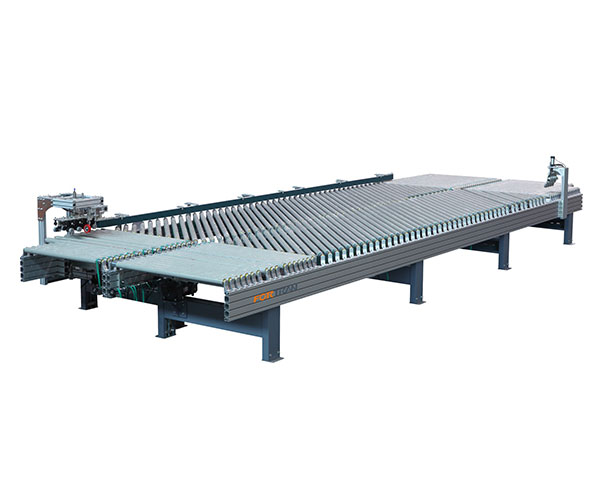

b. Double-row of connection of 2 edgebanding/edgebander machine:

Model	FQ-DLXG2830
External Dimension	L7000*W2830*H900mm
Panel length	250-2400mm
Panel width	250-1200mm
Main beam	240*50 aluminum
Loading capacity	60kg/m²
Roller distance	120mm
Roller distance at gap position	80mm
Roller diameter	φ54
Roller rubber thickness	2mm
Total power	0.75KW*2+0.55KW*1
Speed	10-28m/min
Inelastic band	Shanghai Yongli
Working height	900mm
Photoelectric switch	German Sick
Frequency converter	Delta/ Inovance
Electric machinery	WANSHSIN
Pneumatic components	Taiwan AirTAC

1.The main beam is made of high-strength aviation aluminum, which conforms to the international standard ICE 61131.
2.The joint part is precisely welded by Japanese OTC robot, which is corrosion-resistant and moisture-resistant for a longer service life.
3.The roller surface adopts imported bright silver gray rubber, which is wear-resistant.
4.The foot adopts the integrated bending process, which is firm and durable.
5.The speed of the power guiding rule is synchronized with the speed of the conveyor to solve the problems of scraping and edging when the plate is edging.

4.Product Details
