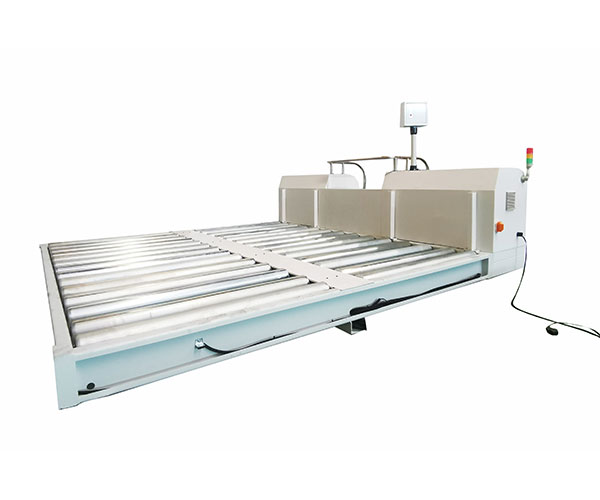

Rgv Rail Guided Vehicle

In the rgv rail guided vehicle of production automation, with more than ten years of production experience, the rgv rail guided vehicle produced by fortran has become well-known in China, making material transportation a key position in the whole automatic production line. Connecting each automatic equipment in series plays an important role in plate transportation. With the most professional technology, reasonable product cost performance and high-quality service, we have won high praise from customers.

Model:FQ-DG0625

Send Inquiry

Product Description

1.Product Introduction

The emergence of the rgv rail guided vehicle is more and more widely used with the higher requirements for automatic transportation of panels. The rgv rail guided vehicle can be easily and automatically connected with other machines, such as various buffer areas / conveying roller tables / elevators, etc. In addition, the rgv rail guided vehicle has the advantages of simple operation and fast operation speed, which significantly reduces the workload and labor cost of personnel and improves labor productivity. At the same time, the application of the rgv rail guided vehicle can make the transmission plate very convenient.

2. Product Parameter (Specification)

Rgv Rail Guided Vehicle

Model	FQ-DG0625
External Dimension	L3000W2235H300mm
Roller center distance	215mm
Roller size	φ108
Roller diameter	φ22
Power supply	1.5kw
Speed	4-12 m/min
Frequency converter	Taiwan Delta
Pneumatic component	Air TAC
Loading	3T
Voltage	3 phase 380V, 50Hz

3. Product Feature And Application

1.The feet are bent integrally and welded with high strength
2.Chain drive is used, which is flexible and balanced without deviation
3.Fortran independently produces rollers with stable structure, low runout rate, smooth rollers and strong load capacity

4.Product Details
