180 Degree Panel Turnover Machine

1.Product Introduction

180 Degree Panel Turnover Machine includes cylindrical turnover machine, horizontal plate turnover machine, windmill-type turnover machine and sucker type turnover machine. Sucker type turnover machine is applicable to cutting section. Cylindrical turnover machine and windmill-type turnover machine are applicable to sander section. Horizontal plate turnover machine is applicable to automatic engraving system and automatic drilling machine.

2. Product Parameter (Specification)

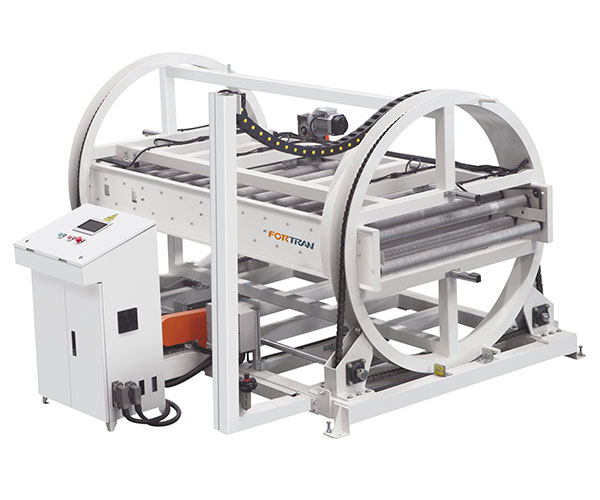

a. Cylindrical turnover machine:

Model	FQ-YFBJ24
External Dimension	L3000/ 3500/ 4000*W2530*H1850mm
Panel length	500-2400mm
Panel width	300-1200mm
Panel thickness	10-60mm
Loading capacity	60kg/m2
Total power	3KW
Speed	4-5 times/min
Working height	900mm
Roller diameter	φ54
Multiple groups of pneumatic grippers ensure stable clamping of panel
Safety device	anti-overshoot front gear
Main beam	high-strength square steel
Pneumatic component	AirTAC
Electric device	Schneider
PLC controlling system	Delta/ Inovance

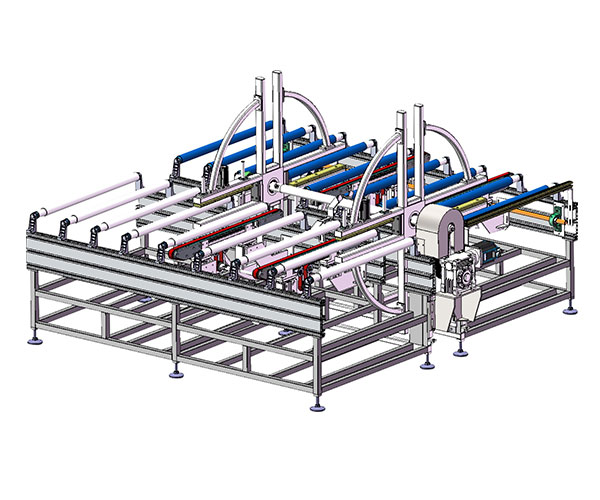

b. Horizontal plate turnover machine

Model	FQ-HFBJ24
External Dimension	L3500*W1415*H1300mm
Panel length	400-2400mm
Panel width	300-1200mm
Panel thickness	10-60mm
Loading capacity	50kg/m2
Total power	3KW
Speed	4-5 times/min
Working height	900mm
Translation belt	Shanghai Yongli
Main beam	high-strength square steel
Pneumatic component	AirTAC
Electric device	Schneider
PLC controlling system	Delta/ Inovance

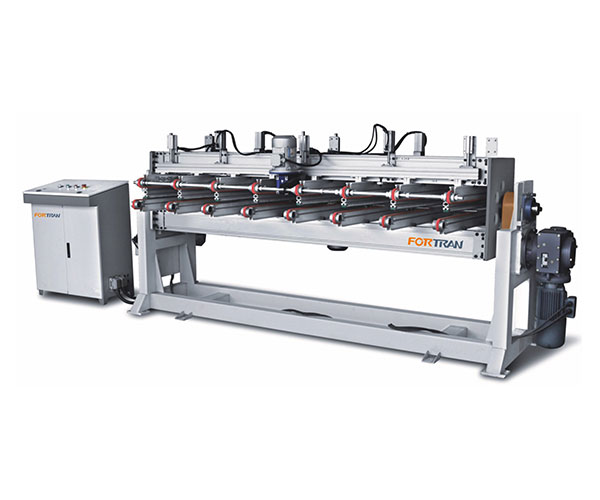

c. Windmill-type turnover machine

Model	FQ-FBJ
External Dimension	L2000*W1650*H1800mm
Panel length	400-2400mm
Panel width	300-1200mm
Panel thickness	10-60mm
Loading capacity	80kg/m2
Total power	3KW
Speed	4-5 times/min
Working height	900mm
Main beam	high-strength square steel
Pneumatic component	AirTAC
Electric device	Schneider
PLC controlling system	Delta/ Inovance

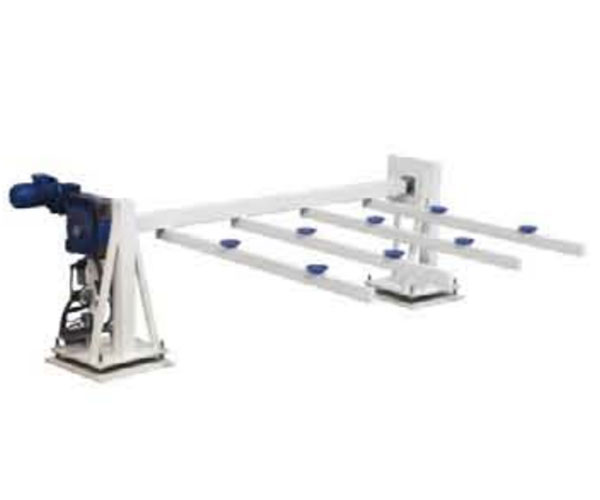

d. Sucker type turnover machine:

Model	FQ-FZFB
External Dimension	L3000*W1300*H900mm
Panel length	400-2400mm
Panel width	300-1200mm
Panel thickness	10-60mm
Loading capacity	80kg/m2
Total power	3KW
Speed	4-5 times/min
Working height	900mm
Main beam	high-strength square steel
Pneumatic component	AirTAC
Electric device	Schneider
PLC controlling system	Delta/ Inovance

1.The main beam is made of high-strength aviation aluminum, which conforms to the international standard ICE 61131.
2.The joint part is precisely welded by Japanese OTC robot, which is corrosion-resistant and moisture-resistant for a longer service life.
3.The upper and lower parts of the drum are connected with synchronous chain transmission to ensure that the speed is consistent.
