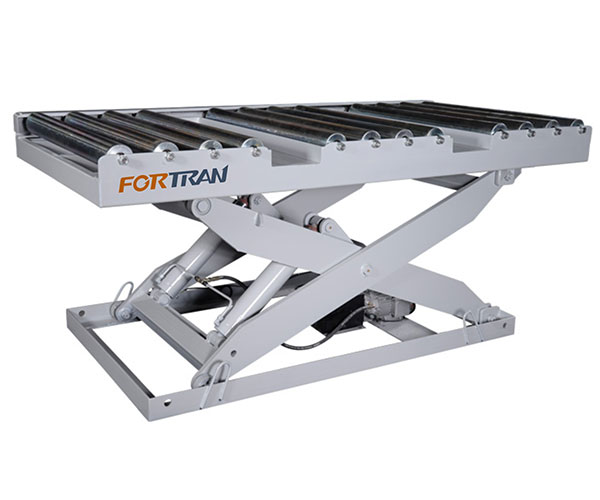

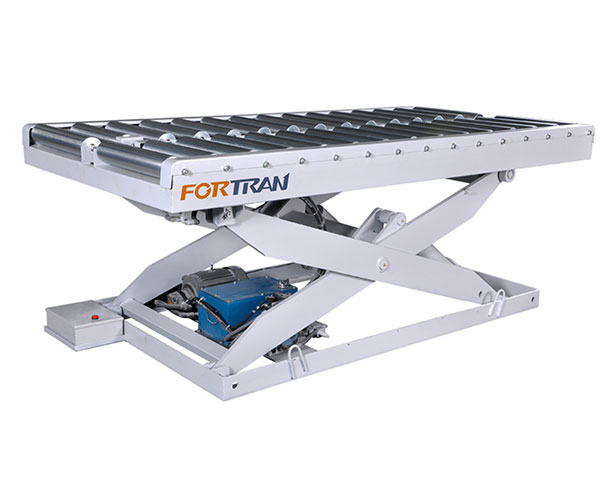

3 Tons Hydraulic Lifting Table with Unpowered Roller Surface

1.Product Introduction

3 Tons Hydraulic Lifting Table with Unpowered Roller Surface is a kind of lifting equipment with good lifting stability and wide application range. It is mainly used for transporting goods between the height differences of production line. The 3 Tons Hydraulic Lifting Table normally worked with CNC Panel Saw and CNC Nesting Machine, for workpiece feeding. The 3 Tons Hydraulic Lifting Table is with high quality and competitive price which can improve the production efficiency for the customers.

2. Product Parameter (Specification)

Table size	2500*1250mm
Min. Height	450mm
Max. Height	1650mm
Load	3000KG
Voltage	3KW, 3 Phases 380V, 50Hz
Oil cylinder	Imported brand
Sealing ring	Imported brand
Production standard	CE certificate
With dual hydraulic cylinders and safety valves fitted
Table surface with forklift space

1.High strength manganese steel scissors, high hardness and strength frame.
2.Foot switch control, simple operation, simplifying the operation of workers.
3.The welding parts of the lifting table are equipped with fixtures, high precision and standardized production, and stable quality.
4.It supports manual/motorized forklift loading, and it can be placed directly.

4.Product Details
