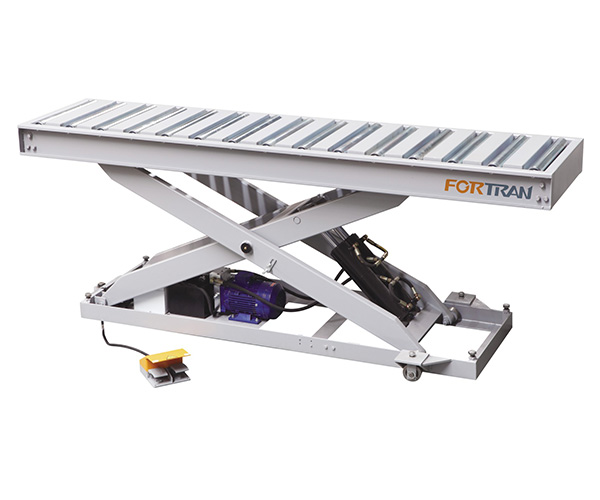

1 Ton Fixed Roller Type Lifting Table

1.Product Introduction

The 1 ton fixed roller type lifting table is mainly used in the manual feeding and discharging of the edge banding machine for the transfer between the fields at different heights. It can be connected with the workshop roller line to facilitate the transfer of goods. You can choose a 1 ton fixed roller type lifting table or a 1 ton fixed roller type lifting table with 90 degree turning. The 1 ton fixed roller type lifting table, the lifting is stable, and the imported hydraulic components are used to ensure long-term operation without oil leakage.

2. Product Parameter (Specification)

1 Ton Fixed Roller Type Lifting Table

Model	FQ-SJT-G-1T
External Dimension	L2500*W600*H300mm
Height stroke	300-1100mm, no digging
Roller size	φ60*1.6mm
Roller diameter	φ12
Power supply	1.5kw(3 phase 380V,50Hz)
Hydrocylinder	80*40*2
Seal ring	NCK
Scissors tube	120*40
Actual load	1000kg

1 Ton Fixed Roller Type Lifting Table with 90 Degree Turning

Model	FQ-SJT-G-1T
External Dimension	L2500*W600*H300mm
Height stroke	300-1100mm, no digging
Roller size	φ60*1.6mm
Roller diameter	φ12
Power supply	1.5kw(3 phase 380V,50Hz)
Hydrocylinder	80*40*2
Seal ring	NCK
Scissors tube	120*40
Actual load	1000kg

1.The roller is made of hot-dip galvanized pipe with high corrosion resistance
2.The fork arm is laser-cut and formed at one time, with high cutting accuracy, durable and not easy to deform
3.The welding parts of the lifting table are equipped with fixtures, high precision and standardized production, and stable quality
4.Using a double-pedal foot switch, the quality is reliable and durable, with its own safety protection top plate, which is easy to operate and simplifies the operation of workers
5.The lifting power is strong, the process is smooth and smooth, and the load capacity is high

4.Product Details
